1500mm H Beam Assembly Machine High Accuracy Hydraulic Transmission

Brand Name : Friendship Machinery

Model Number : HG Series

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Delivery Time : 30 working days after down payment

Packaging Details : Standard package

name : h beam assembly machine

keyword : h beam assembly machine

model : HG Series

feature : High accuracy

Contact Now

H Beam Assembly Machine For Welded Steel H Beam Assembling Structure Production Line

1. Simple introduction

H beam production line is specially designed for the welding of H beam,it is mainly composed of cnc strips cutting machine, assembling machine,gantry welding machines,flange straightening machine and ball blasting machine. The whole line adopts advanced technology of head assembling, horizontal leveling stand welding, single arc and double wire welding, and realizes fast welding of H beam with welding distortion greatly reduced Ithus t is the perfect device for producing large quantity of H beam.



2. Features
● 3 models according to H beam web height: 1500, 1800 and 2000mm
● Process including clamping and centering web and flange with hydraulic transmission
● Control system adapts Japanese Mitsubishi PLC controller
● Both sides clamped and aligned through mechanical system, ensuring positioning of web and flange of various width within specified range accurate automatic alignment, no need to adjust each time eccentricity roller
● Upper press beam adapted with right and left 4 groups of guide-way, ensuring pressing stability
● Automatic spot welding arc-tracing unit driven with light-duty oil cylinder, without compressed air input, output conveyor and inlet pulling rod system are in segments, length and quantity can be chosen according to workpiece length
● Used for inching adjustment hydraulic stopping rack at both sides can ensure alignment of end side of web and flange during assembly

3. Technical parameter

No Item Specification
1 Web height 300-1500mm(customizable)
2 Web thickness 5-30mm
3 Flange width 150-800mm
4 Flange thickness 5-30mm
5 Workpiece length 5~15m
6 Inclination of H beam ≤8°
7 Welding type single arc and double wire saw welding(customizable)
8 Welder /p> USA Lincoln DC1000(customizable)
9 Welding speed 300-1500mm/min(step less speed adjustment)
10 Voltage 380V50Hz, 3ph
11 Welding position fillet welding at flat position

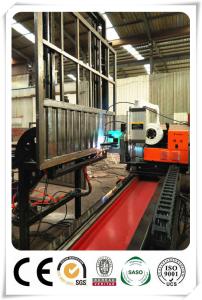

1500mm H Beam Assembly Machine High Accuracy Hydraulic Transmission
